CY280C大卷裝倍捻機
發布時間：2011-03-10

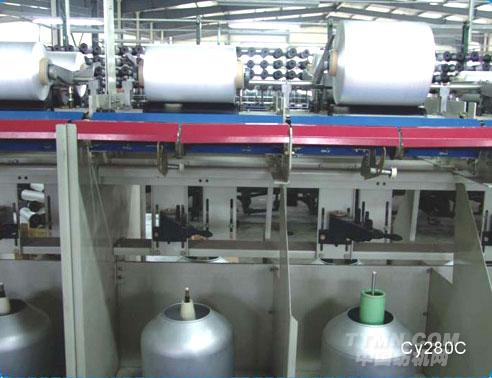

CY280C大卷裝倍捻機
適用范圍
工業縫紉線、輪胎簾子線、傳動帶粘合線，漁網用線或箱包線布料、背帶用線等1000~12000D不同規格紗線的加捻。
Applied range
It is applied to twist various yarns, including: industrial cusir, tyre cord, belt adherent yarn, fishing net yarn, bag cloth and belt yarn, etc.
特點
- 采用了電腦自動導絲成形系統,導絲速度不受限制;
- 可以一次性加工6~8KG和6~13KG的筒子,錠子卷裝量大,且提高了生產效益;
- 纖維的生產范圍廣,最粗纖維可以做到12000D,最低捻度可以生產20捻/米;
- 腳踏式制動系統，操作更簡單，同時延長龍帶和錠子壽命；
- 高品質錠子在高速運轉下的持久穩定性；
- 二級傳動結構,使受力更合理,變頻控制電機,可以方便調整所需轉速.
Features
- It adopts computer automatic Godet-forming system, and the speed of yarn guiding is unlimited;
- It can process 6~8kg and 6~13kg bobbin by one time, the package volume of spindles is filled out and the production efficiency is highly improved;
- The range of production is wide, the biggest fiber may reach 12000d, and the minimum twist may reach 20t/m;
- Pedal-braking system is more easy to operate, and the longevity of apron belt and spindle will prolong at the same time;
- The perdurable stability of high quality spindle at the high-speed operation;
- Two-step drive device make the force-enduring reasonable, and the frequency converter control the motor, it is easier to adjust the speed of spindle.
技術參數 Technical Paramete
操作形式 Form of operation |
雙面單層，引絲線穿線 |
|
錠數 Number of spindles |
8錠倍數，標準型64錠 8n, 64 spindles are standard |
|
錠距 Spindle gauge |
550mm |
|
錠速范圍 Spindle speed range |
500-9000r/min |
|
捻度范圍 Twist range |
20-1000T/M |
|
捻向 Twist direction |
S向或Z向 S or Z |
|
錠子張力器 Spindle tensioner |
鋼球式或膠囊式 Ball or capsule type |
|
供紗筒管尺寸 Size of reversing bobbin |
￠75×￠86×300 |
|
卷取筒管尺寸 Size of winding bobbin |
￠75×￠86×300 |
|
卷繞動程 Traverse |
152mm-280mm |
|
額定功率 Rated power |
22kw |
|
啟動方式 Start-up mode |
變頻慢速啟動 Frequency converter start-up slowly |
|
卷繞角 Take-up angle |
0-30° |
|
導絲器往復次數 Filar guide to-and –fro times |
最大60次/分 Maximum 60t/min |
|
卷取速度 Take-up speed |
最大90米/分 Maximum 120m/min |
|
卷裝量 Take-up package |
最大8千克或13千克 Maximum 8kg or 13kg |
|
錠子傳動 Spindle drive |
龍帶切線傳動 Apron belt circulation drive |
